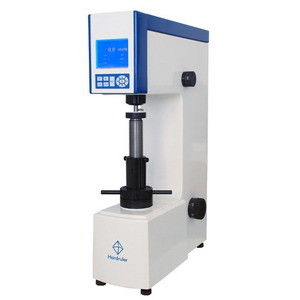

HR-145D Digital twin Rockwell and Superfical Rockwell Hardness Testing Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HARDRULER |
| Certification: | CE |
| Model Number: | HR-145D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard exporting package |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50, 000PCS/Year |
|
Detail Information |
|||
| Measuring Range: | A, B, C, D, E, F, G, H, K, L, M, R | Standard: | ISO, ASTM, GB/T |
|---|---|---|---|
| Calibrating Method: | Standard Hardness Test Blocks | Product Name: | Digital Rockwell And Superficial Rockwell Hardness |
| Rockwell Scales: | A, B, C, D, E, F, G ,H, K, L ,M, R, P, S, V | Superficial Rockwell Scales: | 15n, 30n, 45n, 15t, 30t, 45t, 15W, 30W, 45W, 15X, |
| Display Conversion To: | Hv, Hb, Hr Scales | Preload: | 3kgf(29.4n), 10kgf(98.07n) |
| Rockwell Test Loads: | 60kgf(588.4n), 100kgf(980.7n), 150kgf(1471n) | Superficial Rockwell Test Loads: | 15kgf(147.1n), 30kgf(294.2n), 45kgf(441.3n) |
| Dwell Time: | 1-60s | Hardness Indication: | Digital LCD Display |
| Origin: | Guangdong | HS Code: | 9024800000 |
| Port: | Shenzhen, China | ||
| Highlight: | digital rockwell hardness testing machine,HR145D rockwell hardness testing machine,15N digital rockwell hardness tester |
||
Product Description
Usage
Model HR-145D Digital Twin Rockwell Hardness Tester is suitable to determine the Rockwell & Superficial Rockwell hardness of ferrous metals, alloy steel and hard alloy, as well as treated layers of metal surface, such as carburized layer, nitrided layer and electroplated coating, etc.
Features & Advantage
- Twin tester--Regular Rockwell & Superficial Rockwell hardness for metal and plastic material.
- Conversion to all other hardness scales, such as Vickers and Brinell
- Menu Operated LCD screen, with Conversions, Date, Time
- Integrated printer for test result and statistics
- RS-232C interface is available
- Accuracy conforms to EN-ISO 6508-2 and ASTM E-18
Specifications
| Product name | Digital Rockwell and superficial Rockwell Hardness Tester |
| Model | HR-145D |
| Rockwell Scales | A, B, C, D, E, F, G ,H, K, L ,M, R, P, S, V |
| Superficial Rockwell Scales | 15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y |
| Display conversion to | HV, HB, HR scales |
| Preload | 3kgf(29.4N), 10kgf(98.07N) |
| Rockwell Test loads | 60kgf(588.4N), 100kgf(980.7N), 150kgf(1471N) |
| Superficial Rockwell test loads | 15kgf(147.1N), 30kgf(294.2N), 45kgf(441.3N) |
| Dwell time | 1-60S |
| Hardness indication | Digital LCD Display |
| Resolution | 0.1HR |
| Loading Control | Automatic |
| Data Output | RS-232C and Built-in Printer |
| Max. Height of Specimen | 175mm |
| Instrument Throat | 165mm |
| Dimension (L*W*H) | 550 x 260 x 780mm |
| Gross/Net Weight | 120Kg/90Kg |
| Power supply | 110V/220V, 50HZ |
| Accuracy | EN-ISO 6508 , ASTM E-18, GB/T230.2 |
Standard delivery
| Main unit | Thermal printer | Data-output RS-232C |
| Cone Diamond Indenter | Ø 1.5875 Ball Indenter | Ø1.5875mm Steel Ball |
| Large Flat Anvil | Small Flat Anvil | V-notch Anvil |
| Hardness Test Block (85-100) HRB | Adjustable feet | Accessories case |
| Anti-dust cover | Instruments certificate | Installation & user manual |
