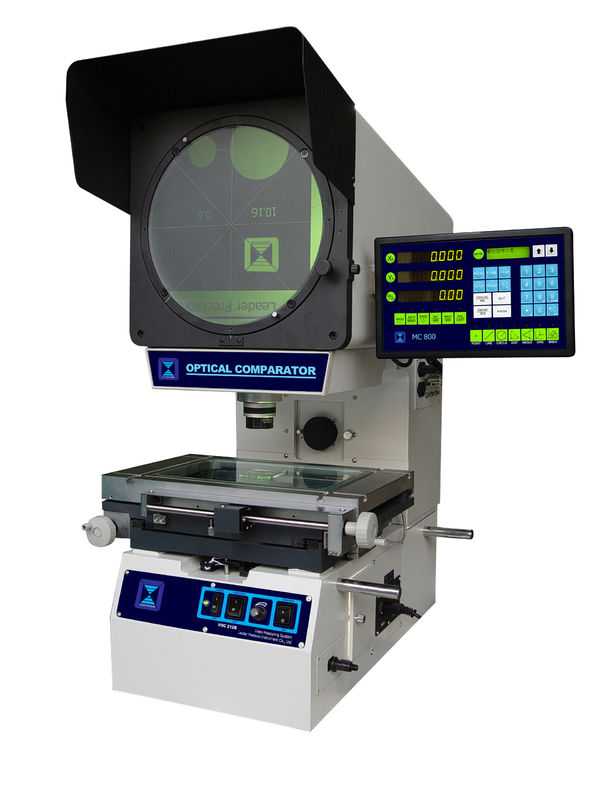

High Precision 250mm*150mm Vertical Optical Measuring Instruments
Product Details:
| Place of Origin: | china |
| Brand Name: | L&D |
| Certification: | CE |
| Model Number: | VOE-2515 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Vacuum & Free Fumigation Plywood Export Package |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PCS/Year |
|
Detail Information |
|||
| Stage Travel X Axis: | 250mm | Stage Travel Y Axis: | 150mm |
|---|---|---|---|
| Resolution: | 0.5µm | Measuring Unit: | Built In Linear Scale |
| Measuring Accuracy: | (2.5+L/150)µm | Port: | Shenzhen, China |
| Highlight: | 44.3mm Optical Measuring Instruments,250mm*150mm Optical Measuring Instruments,44.3mm optical measurement machine |
||
Product Description
VOE series Vertical Benchtop Optical Comparator are reliable and affordable non-contact measuring system with high precision and efficiency. VOE series vertical Benchtop Optical Comparator enjoyed the good reputation in the market because of its design and stability. This Optical inspect device is a perfect metrology solution to the contour and surface measurement. This series Measuring machine is a necessary for quality control
VOE series Vertical Benchtop Optical Comparator is widely used in calibration labs or on the shop floor.
VOE series Optical Comparator can inspect all kinds of surface and outline of complicated work-pieces, such as cam, screw thread, gear, milling cutter, tool, dies, press components and so on, This bench top optical measurement device is an effective metrical and analytic system for education, research institute and lab.
Feature & Advantage
Full erect: Not be affected by upside down and division in the left and right
High precision: (2.5+L/150) μm is comparable to the accuracy of the foreign similar products
Large travel: Max travel can reach 250*150*100(for the focus)
Large load: High precision table design can afford load of 45 kgs without affecting the measuring performance.
High resolution: 0.5 micron bulit in linear scale
Technical data
| Erect | VOE-1510 | VOE-2010 | VOE-2515 |
| Metal table's size(mm) | 357*228 | 404*228 | 450*280 |
| Glass table's size(mm) | 210*160 | 260*160 | 306*196 |
| Stage Travel X-axis | 150mm | 200mm | 250mm |
| Stage Travel Y-axis | 100mm | 100mm | 150mm |
| Stage Travel Z-axis | 100mm(for focus) | 100mm(for focus) | 100mm(for focus) |
| Resolution | 0.5µm | 0.5µm | 0.5µm |
| Measuring unit | Built-in linear scales | Built-in linear scales | Built-in linear scales |
| Measuring Accuracy | (2.5+L/150)µm | (2.5+L/150)µm | (2.5+L/150)µm |
| Screen | Screen Diameter: ¢ 312mmwith 4 film clips | ||
| Screen material: fine ground glass | |||
| Reference line: Staggered cross and cross-hair | |||
| Screen rotary range: 0°~360° | |||
| Rotary angle resolution:1' or 0.01° | |||
| Digital Readout | DC-3000 measuring counter with RS232 output | ||
| Illumination | Contour illumination: 24V/150W halogen bulb Reflected illumination: 24V/150W halogen bulb Filter (option) for contour illumination |
||
| Power | AC110/220V, single phase 50/60Hz, Total power 400W | ||
| Cooling | Built-in cooling fans | ||
| G.W/N.W | 210/160KG | 215/165KG | 230/180KG |
|
Dimension (L*W*H ) |
780*780*1120(mm) | 780*780*1120(mm) | 780*810*1120(mm) |
Technical Data of Objective Lens
| Objective Lens | Magnification | 10X | 20X | 50X | 100X |
| View field diameter | ¢ 30 | ¢ 15 | ¢ 6 | ¢ 3 | |
| Working Distance(mm) | 77.7 | 44.3 | 38.4 | 25.3 | |
| Max. Workpiece height | 90mm | 90mm | 90mm | 90mm |
Standard delivery
| Digital Readout DC-3000 | VOE-10X Objective | Screen Clamp | Foot-Switch |
| LED transmitted light | LED reflective illumination | Power cable |
Optional delivery
| Measurement Software | Edge Detector | Overlay Charts (3 kinds) | Rotary table |
| VOE-20X Objective Lens | VOE-50X Objective Lens | VOE-100X Objective Lens | Calibration scale |
| Holder with Clamp | V Block with Clamp | Swivel Center Support |
