Depth, Height, Flatness and Parallelism 1µm LH-0050 Precision Height Gauge
Product Details:
| Place of Origin: | china |
| Brand Name: | MICRO ACCURACY |
| Certification: | CE ISO SGS |
| Model Number: | LH-0050 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in aluminum plastic film firstly, and then reinforced with kraft carton for outer packing |
| Delivery Time: | 3 working days after receive the payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50, 000PCS/Year |
|
Detail Information |
|||
| Name: | Height Gauge | Accuracy: | 1μm |
|---|---|---|---|
| Resolution: | 1μm | Travel: | 50mm |
| Weight: | 12kgs | ||
| Highlight: | LH0050 Precision Height Gauge,1um Precision Height Gauge,column machinist height gauge |
||
Product Description

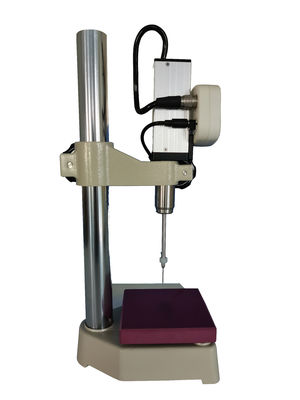

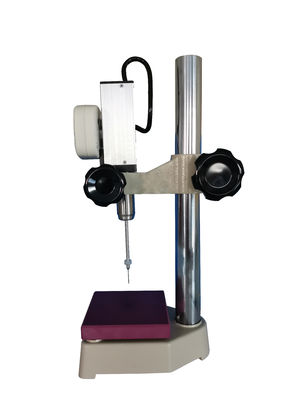

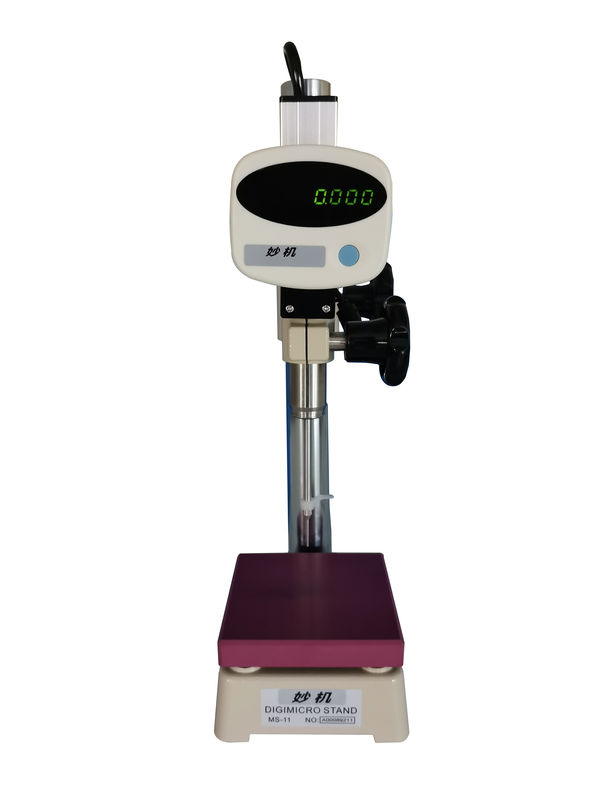

Depth, Height, Flatness and Parallelism 1um LH-0050 Precision Height Gauge
Usage:
To measure the Depth, Height, Flatness and Parallelism of work pieces
Character:
Excellent functionality and easy operation
Data out
MM/INCH models
High durability and high accuracy are ensured by an improved column design
Standard with Ceramics base
Technical Parameter:
| Model | LH-0050 | LH-0100 |
| Measuring Range | 50mm | 100mm |
| Mini readings | 1µm | |
| Accuracy | 1µm | 3µm |
| Measuring Speed | ≦500mm/second | |
| Measuring Force |
Downwards direction: 125-175gf (Shift 35gf) |
Downwards direction: 135-195gf (Shift 35gf) |
| Horizontal direction: 90-140gf | Horizontal irection:100-150gf | |
| Data Processor |
Display: 8 Bit LED display Functions: (1) Zero setting (2) Auto Erection (3)/ MM/INCH conversion |
|
| Temperature | 20ºC | |
| Humidity | ≦60% | |
| Weight | 450g | 600g |
| Voltage | DC5V 1000mA | |
